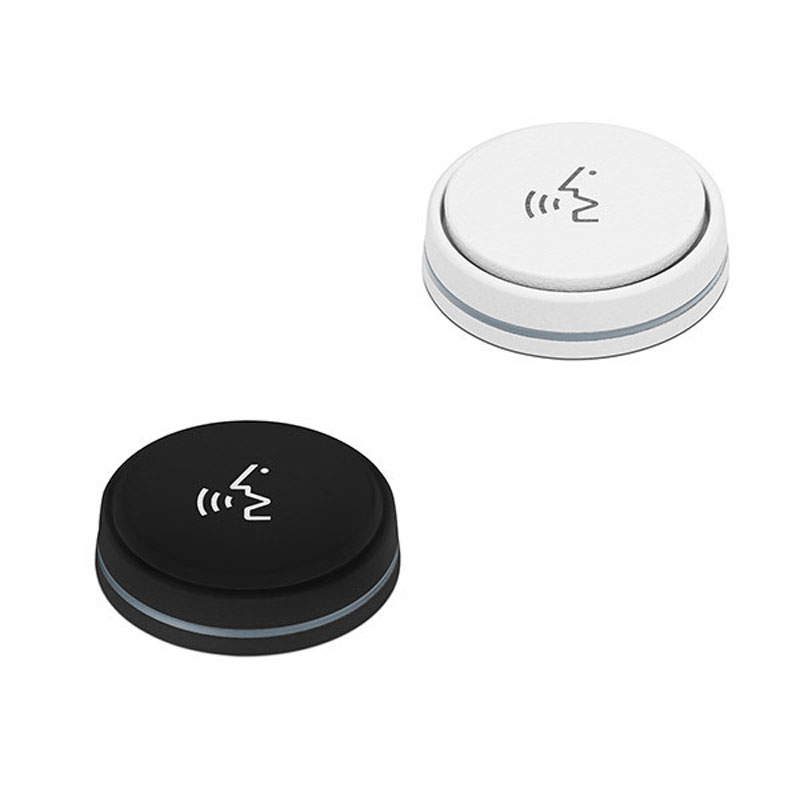

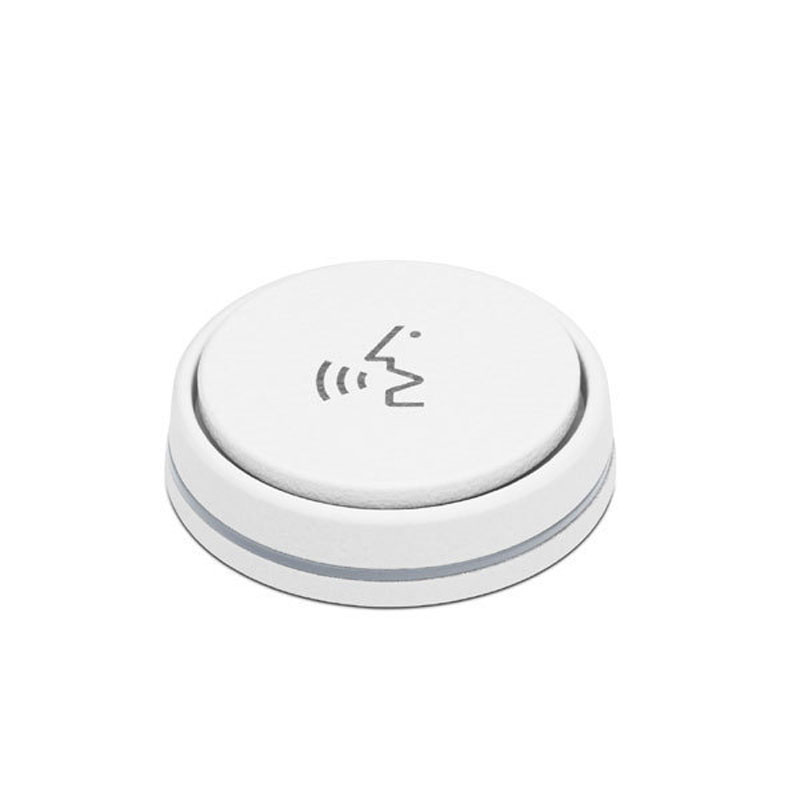

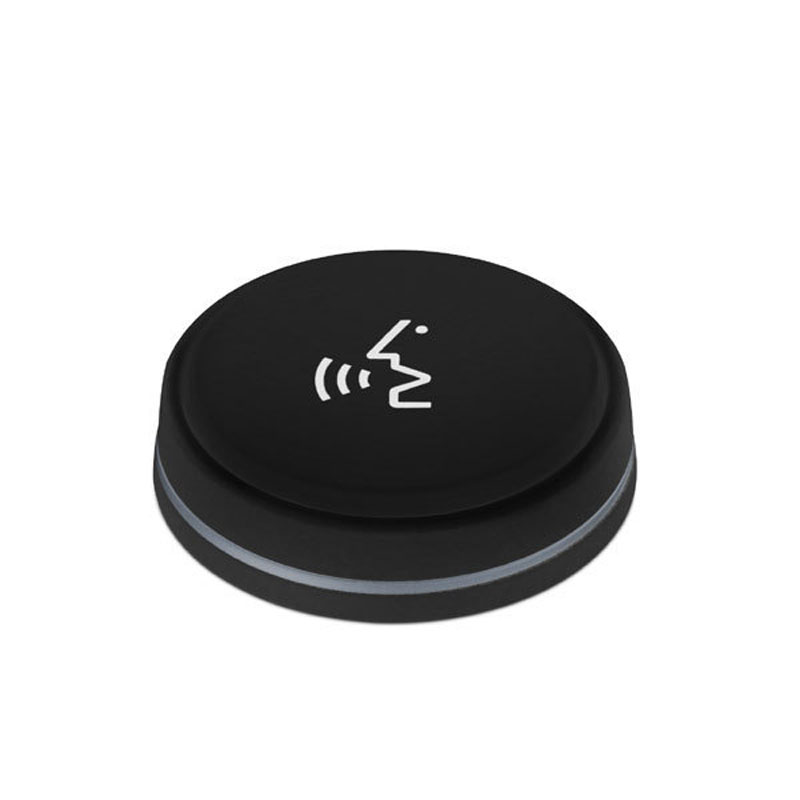

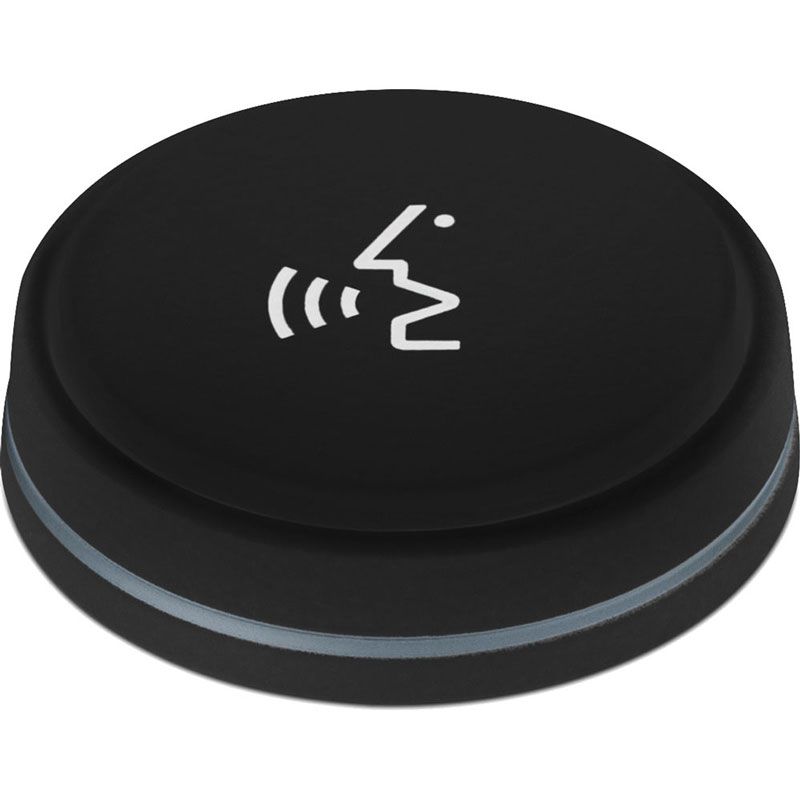

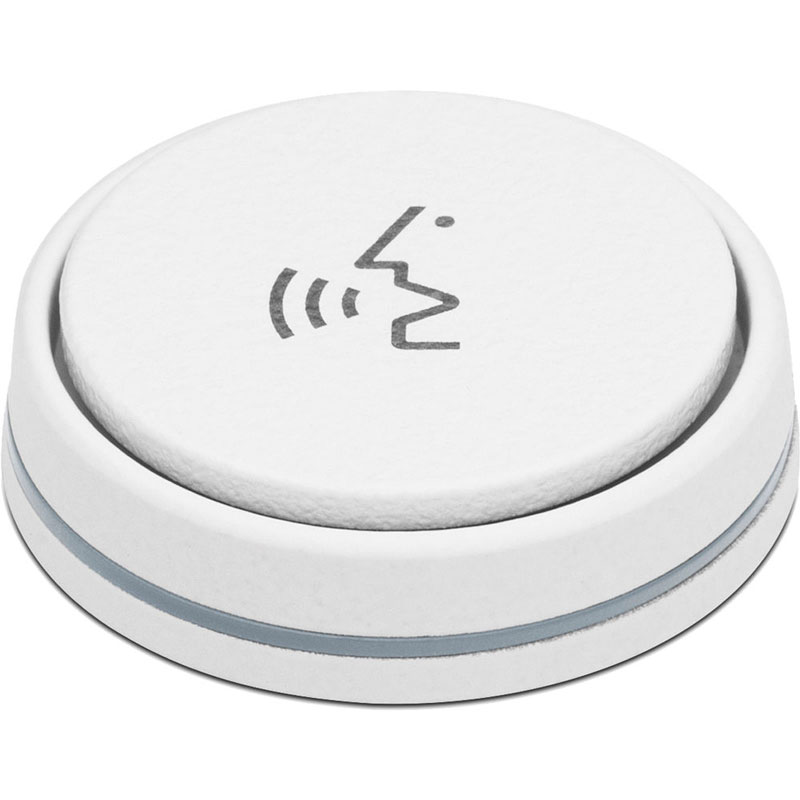

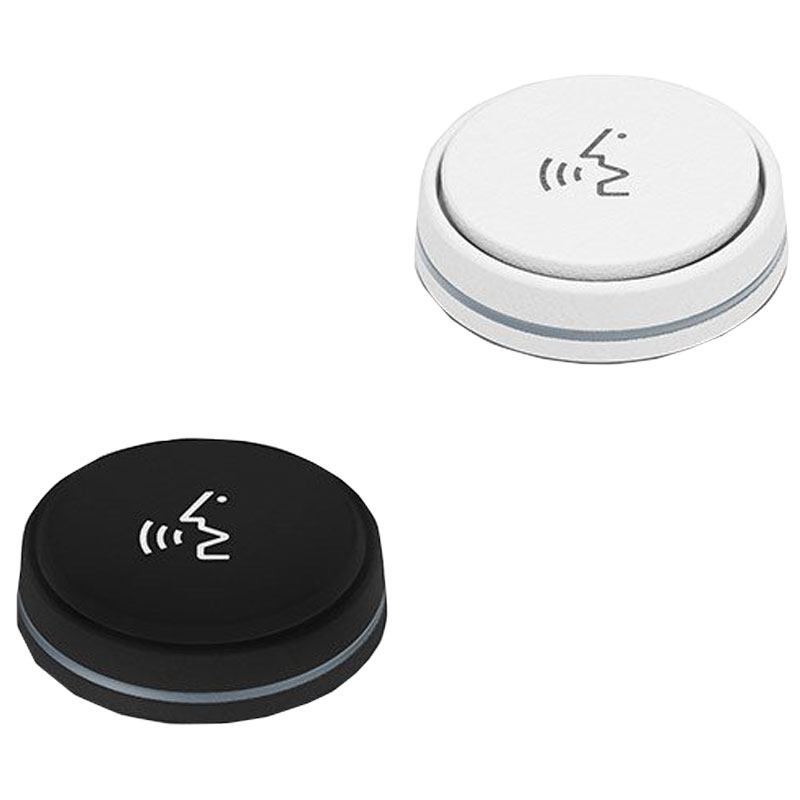

Sennheiser 森海塞尔 MAS 1 话筒开关
优雅而低调的外观，坚固的MAS 1话筒开关使话筒控制变得轻而易举。
连接到MAS 133内联开关盒，它可以通过可编程话筒激活模式（PTT，PTM，切换开/关，永久开启）控制任何通过XLR连接的话筒。为了便于操作，MAS 1配有双色状态指示灯。
概述
Elegant and low-key in its appearance, the sturdy MAS 1 microphone button makes mic control a breeze. Connected to the MAS 133 inline switch box it can control any XLR-attached microphone by means of programmable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). For easy operation the MAS 1 comes with a bi-color status indicator.
包装内含
MAS 1
Mounting material
Quickguide
技术数据
颜色: black white nextel grey LED light ring: red / green
尺寸: Height: 81 mm (8 mm above surface), Diameter: 28.5 mm
接头:XLR-5M out, Pin assignment: 1 = gnd, 2 = Switch, 3 = LED red ?, 4 = LED green ?, 5 = LEDs +12 V in
重量: 60 g
幻像供电: 12 V (1.5 mA max.)
工作温度: 1 ° … +50 °C
电流消耗: LED ring: 3 mA
线程 : M 20
尺寸：高度81mm（表面上方8mm），直径 28.5mm
颜色：黑 白 灰
接头类型：XLR-5
